Trombay Public Primary School & Community Ground

at Trombay, Cheetah Camp

Building Making

Neha Shah | Semester 6 | 2022-23

Site,site forces & context

observation final.png

Narrative

The site is seen as a Labrinth of channels carrying waste water, spouts pouring rainwater from the roofs, cylindrical containers holding drinking water, and water taps providing drinking water.

Edge conditions- Flow, Control

dia 1.jpg
dia 3.jpg
dia 4.jpg
dia 2.jpg
dia 5.png

The classrooms act as boundary walls to the community. The wall made and given by the mhada,is adapted in different ways by the school. As you enter the school, to the left it becomes a corner for a drinking water facility for the students. The houses at the edge of the school have their domestic activities spill over into the lanes creating private and intimate spaces. The lanes are used mainly for water storage, for drying clothes, and washing utensils. The openings (towards the lanes)in the walls of the classrooms remain closed due to these domestic activities. The new block that is built from donated materials is independent of the existing boundary wall and the space between becomes a storage

Design detail

ELEVATION

wix concept.jpg

The intent is to develop the site with the architecture of water. To smudge the edges, to penetrate the context, to flow in the neighborhood​

aaaaaaaaaa sheet 3 sections final_page-0001.jpg

Design iteration

  • Rethinking the school through the idea of stepping

  • Visual connection and a sense of surveillance

  • Releasing more ground space for the community

  • Water getting collected and stored through huge gutters

Design development and detailing

DETAIL 1

Rainwater harvesting


DETAIL 2

Affordances of the edge


DETAIL 3

Roof planter


Construction management and planning

Site management plan

SITE MANAGEMENT PLAN.jpg

Construction documentation

Site Plan with Built Form Lineout


Foundation Plan


Floor plans

Terrace plan

Sections

Evelation

TERRACE PLAN.jpg

Sections

ELEVATION

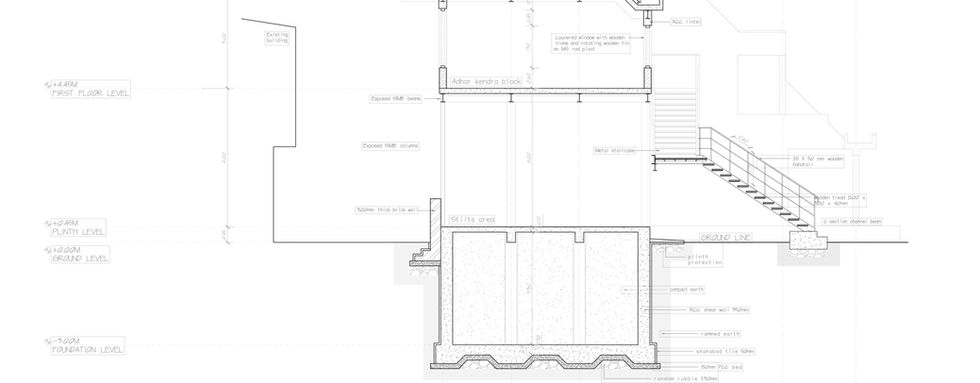

DETAIL 1- External wall section


Detail 2 -Staircase

STAIRCASE DETAIL.jpg

DETAIL 3 - Toilet

Door window schedule

DOOR WINDOW SCHEDULE.jpg

Construction sequencing

CONSTRUCTION SEQUENCING.jpg
